Now at any point, you can restore the saved settings by launching the same tool and selecting the “Restore Settings” option. Select the items you’d like to save and click “Finish.”.It’s a good idea to keep this with your other custom SOLIDWORKS data. Select “Save Settings” and click “Next >.”.Navigate to Help > Save/Restore Settings… SolidWorks keyboard shortcuts you must know HOTKEY, Operation, HOTKEY CTRL+1, Front View, 1 CTRL+2, Back View, 2 CTRL+3, Left View, 3 CTRL+4, Right View.To do so, you’ll use the Copy Settings Wizard. Therefore, it’s a good idea to save a copy of your settings file. Lastly, when heavily customizing your settings, it can be difficult to go back to the default interface. You can do that this tab by clicking “Reset to Defaults.” Saving Your Settings In some cases, you might want to reset everything to the same settings as aįresh install.

Drawings – Dimension Types, View Creation Tools.Assemblies – Mates, Insert Component, Patterns.The Shortcut toolbar displays different, commonly used commands depending on what mode youre in - editing a part, editing an assembly, editing a drawing, or editing a sketch. The 'S' key on your keyboard pulls up the Shortcut toolbar. Sketch – Dimension, Trim, Sketch Entities – Circle, Line, Rectangle Additionally, CTRL + Q + Shift rebuilds all your configurations.While Inserting a Component.Mouse Gestures are one of the easiest ways to speed up your workflow and are completely customizable.Creates a part instead of a configuration when you drag a Toolbox component into an assembly In an assembly with preselected components, inverts the selection when you Ctrl + drag a selection box Copies a component when you Ctrl + drag it.This creates a new dialog box which acts as a hub where all menu customisations are made. You can also bring up the shortcut menu by pressing ‘S’, then right click on the menu and select ‘Customise’.

#Solidworks customize shortcut bar how to

Win 7 23SP5/24SP3, 3DVIA Composer 2015 itsmyjob (Mechanical) 22 Oct 14 07:56. How to change keyboard shortcuts in SOLIDWORKS With a document open, select Tools. To personalise the ‘S’ Key shortcut toolbar either go to Tools>Customise or right click anywhere in the command manager and select ‘Customise’. No worries, there’s an easy way to get an arc whiledrawing The Sketcher workbench then provides a large number of tools allowing you to sketch the.

Alt + Ctrl drag Copies the component and creates a SmartMate (Or, possibly, use one feature and pattern-table it).

When moving a component in the FeatureManager design tree, ensures that the component remains at the same level in the tree and prevents it from being moved into a subassembly Creates a SmartMate when you Alt + drag a component

Tab Changes the XYZ plane when sketching in a 3D sketch.

Shift + drag When sketching a line, the line snaps to specific lengths.

Pressing Ctrl while sketching turns off automatic sketch relations.

Ctrl + drag Suppresses inference lines when dragging an endpoint.

Shift + click Snaps a dimension to the max or min location when dimensioning arcs and circles with the Smart Dimension tool.

Ctrl + drag Creates additional leaders on a note when you Ctrl + drag a leader’s arrowhead.

Alt + drag Moves an annotation independently from the group in which it is contained.

Alt + click Turns off automatic alignment when you place dimensions and annotations.

You can also move a dimension to a different view. Moves the selected drawing view and any related views together as if they are one entity.

Ctrl + drag the middle mouse button Pans a model.

Shift + click Selects everything within the two selected items in the FeatureManager design tree.

Shift Lets you select a transparent face on a part.

Ctrl + click Lets you select multiple entities.

New in Solidworks 2013, new commands can be.

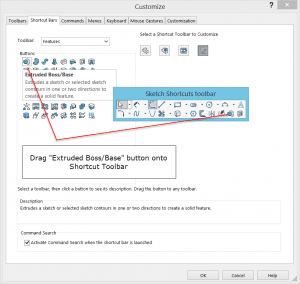

Spacebar Opens the View Selector and Orientation dialog box The shortcut bars can be easily customised by right clicking the command manager and going to the shortcut bars tab.

Alt + middle mouse wheel Shows a section view when using the magnifying glass.

Alt + click Shows a hidden body or component when you hover over the body or component.

Shift + arrow keys Rotates the model 90º.

Depending on what mode youre in, the Shortcut Bar will automatically change.

Alt + drag the middle mouse button Rotates the model parallel to the viewing plane Type the S-Key and the Shortcut Bar will appear where your mouse cursor was.

Add-in toolbars, if implemented using the CommandManager APIs, automatically create a toolbar associated flyout for each API toolbar.

Alt + arrow keys Rotates the model parallel to the viewing plane To change the definition of the flyout, you simply make the regular toolbar visible, customize the buttons that are on that toolbar, and then hide the toolbar.

#Solidworks customize shortcut bar windows

Alt + specified values Inserts standard Windows symbols:.

#Solidworks customize shortcut bar software

The rest of the shortcuts I’ve grouped into categories for easy reference. SOLIDWORKS offers a number of ways to customize the software to make it faster to access the tools you use the most.
